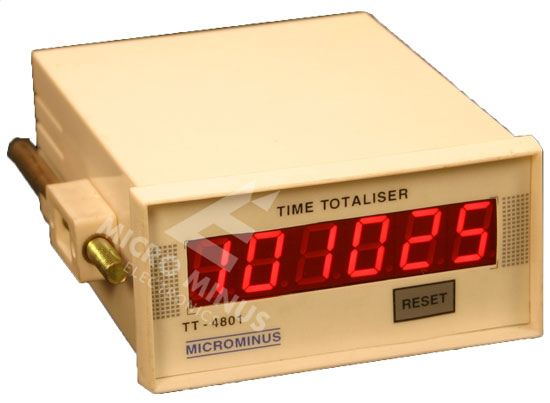

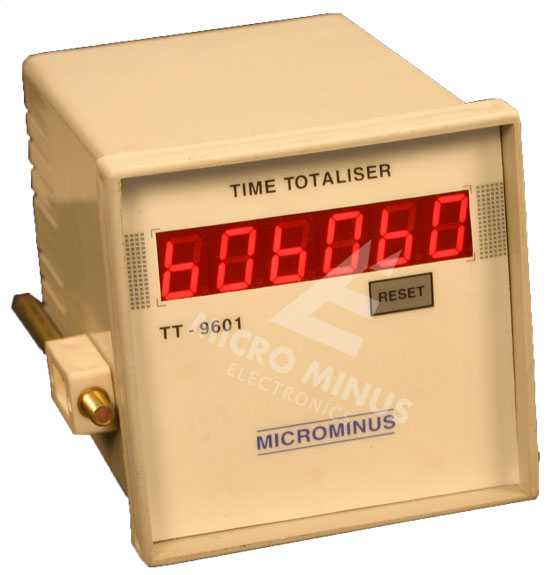

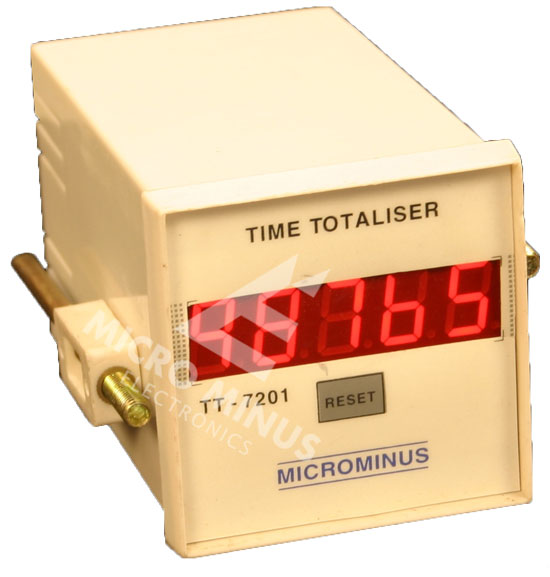

Panel Instruments Electro-plating Instruments Rectifiers Electrical Panel     Model : TT-4801 Model : TT-7201 Model : TT-9601 Panel Meters Digital Frequency Meter Temperature Indicators & Controllers Timers (Digital Timers) Timers (Programmable Timers) Counters Count Totalizers Time Totalizers RPM Indicators High Voltage Tester   Specifications : Range : Hour, min & Sec. (4 or 6 Digit, Provision of Decimal Point) Non-Volatile memory Reset on front by key (key lock facility optional) Time Enable Terminals provided Supply : 230V/110V AC ±10%,50Hz (Any Voltage on Demand). Advantages: Accurate Timing because of Crystal based micro-controller technology. No wear & tear. Most reliable.   Model Series TT-9601 TT -7201 TT -4801 TT -60G Size (mm) 96 x 96 72 x 72 48 x 96 29 x 55 Cutout (mm) 92 x 92 68 x 68 44 x 92 25 x 51 Depth (mm) 120 120 120 85 Range 0-999999 0-999999 0-999999 0-999999 Mounting Flush Panel Mounting Flush Panel Mounting Flush Panel Mounting Flush Panel Mounting Range will be available with Divide by 10, 100 etc. on Demand.   Connection Diagram :   L N E   Supply Input   L N E   Supply Input Auxiliary Contact (Time Enable Contact) MICROMINUS ELECTRONICS COMPANY 11, Tulsi Shyam Apartment, 30, Dhanlaxmi Society, Opp. Gopal Tower, Maninagar, Ahmedabad – 380008 Gujarat, India. Email: info@microminus.com website: www.microminus.com Contact (O): (079) 25471112 Res: (079) 25462930 Mobile: 98257 23804 © 2008 | Microminus Electronics Company     designed by webplus
