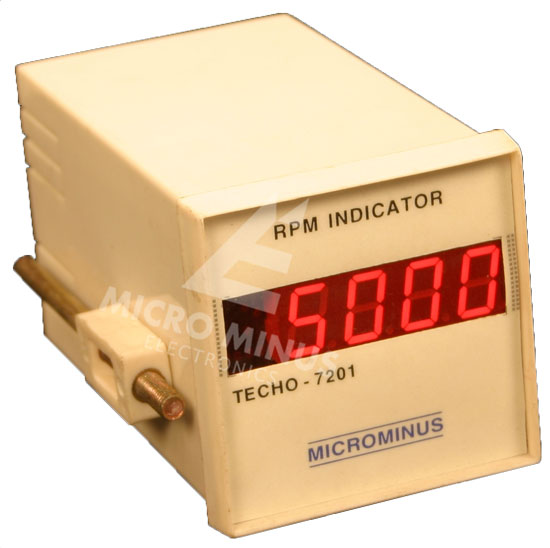

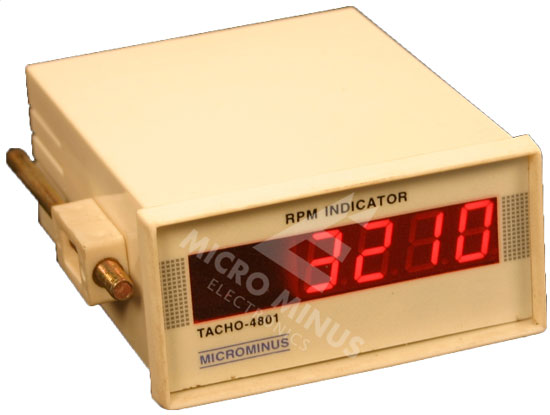

Panel Instruments Electro-plating Instruments Rectifiers Electrical Panel     Model No : Tacho-9601 Model No : Tacho-7201 Model No : Tacho-4801 Panel Meters Digital Frequency Meter Temperature Indicators & Controllers Timers (Digital Timers) Timers (Programmable Timers) Counters Count Totalizers Time Totalizers RPM Indicators High Voltage Tester   Specifications : Input NPN proximity, Rotary Encoder, Switch contact Range 4-5000 RPM Resolution 2 samples per second/ 1 sample per revolution Supply 230V AC/110V Ac ±10%, 50 Hz 12V AC (Any Voltage on Demand). Non-Volatile memory to store last count at power fail.   Applications: Monitoring of Revolution per Minute Indicating of number of Pulses or Pieces/Minute. Speedometer, Length Counting Speed. Advantages: Counting at high speed is possible. No wear out of mechanical parts as compared to mechanical counters. Counting Rate : Low Speed up to 1000 pulse/min High Speed beyond 1000 pulse/min Model No Tacho-9601 Tacho-7201 Tacho-4801 Tacho-60G Size (mm) 96 x 96 72 x 72 48 x 96 29 x 55 Cutout (mm) 92 x 92 68 x 68 44 x 92 25 x 51 Depth (mm) 120 120 120 85 Range 0-999999 0-999999 0-999999 0-999999 Mounting Flush Panel Mounting Flush Panel Mounting Flush Panel Mounting Flush Panel Mounting   Range will be available with Divide by 10, 100 etc. on Demand.   Connection Diagram :   L N E R G B   Supply Input Proximity Switch   NPN Type   L N E         Supply Input Limit Switch (or 12V etc.) MICROMINUS ELECTRONICS COMPANY 11, Tulsi Shyam Apartment, 30, Dhanlaxmi Society, Opp. Gopal Tower, Maninagar, Ahmedabad – 380008 Gujarat, India. Email: info@microminus.com website: www.microminus.com Contact (O): (079) 25471112 Res: (079) 25462930 Mobile: 98257 23804 © 2008 | Microminus Electronics Company     designed by webplus
