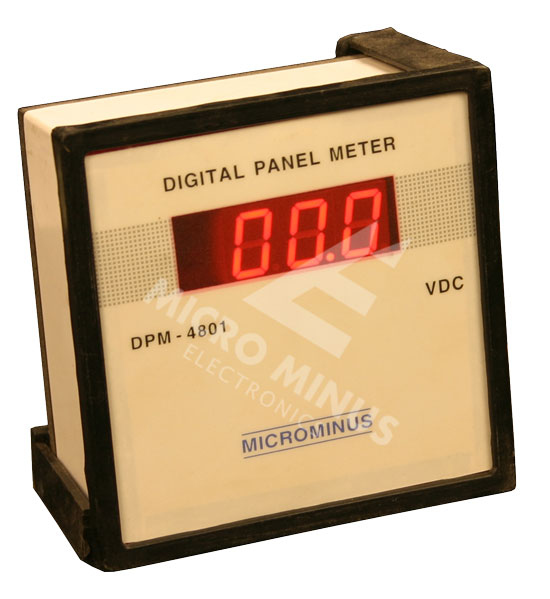

| Model : 96x96 mm |

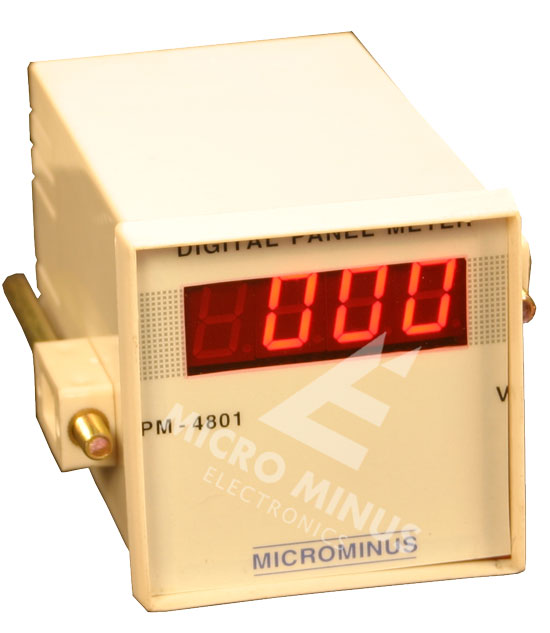

Model : 72x72 mm |

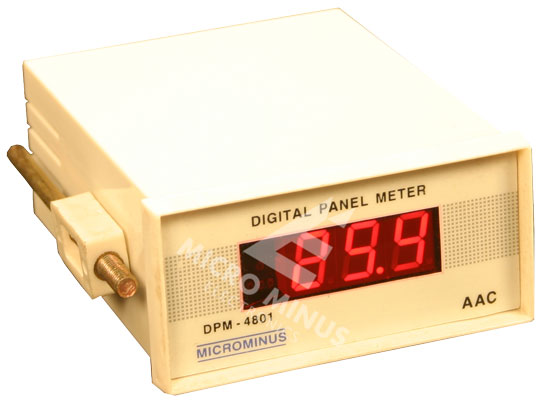

Model : 48x96 mm |
|
|
|
|
| |
| Features : |
- Attractive Look Out.
- Auto Zero Display.
- All ranges available for Voltage and Current, AC & DC.
- Set-able Calibration.
- Direct Input For Current – 20 Ampere, Voltage 750 Volt.
- Standard Panel Mounting.
|
| Specifications : |
| Supply Input |
230 Volt AC (440 Volt AC, 110 Volt AC, 12 Volt AC, 24 Volt AC on Demand) |
| Display |
3-Digit (or 3 ½ Digit) LED Display. |
| Accuracy |
+ / - 0.1 % of FSD. |
| Resolution |
+ / - 1 of Last Digit. |
| Operating Temp |
50 Degree C |
| Humidity |
75 |
| Ranges |
(1) Volt AC – 750 VAC, 200 VAC, 20 VAC, 2 VAC. |
| |
(2) Ampere AC – CT Operated – 30/5, 50/5, 100/5, 200/5 etc. 20 Ampere Direct. |
| |
(3) Volt DC – 750 VDC, 200 VDC, 20 VDC, 2 VDC. |
| |
(4) Ampere DC – Shunt Operated –75 MV Operated on 30, 50, 100, 300, 500 ADC. |
|
| |
| Any Ranges can be available on Demand |
Model Series
|
DPM-9601
|
DPM-7201
|
DPM-4801 |
| Size (mm) |
96 x 96 |
72 x 72 |
48 x 96 |
| Cutout (mm) |
92 x 92 |
68 x 68 |
44 x 92 |
| Depth (mm) |
50 |
120 |
120 |
| Mounting |
Flush Panel Mounting |
Flush Panel Mounting |
Flush Panel Mounting |
|
| |
| Connection Diagram : |
|
| |
| Supply Input |
Measuring Input |
|
|
| |
|
|
|
|
|
|
|
|
|
