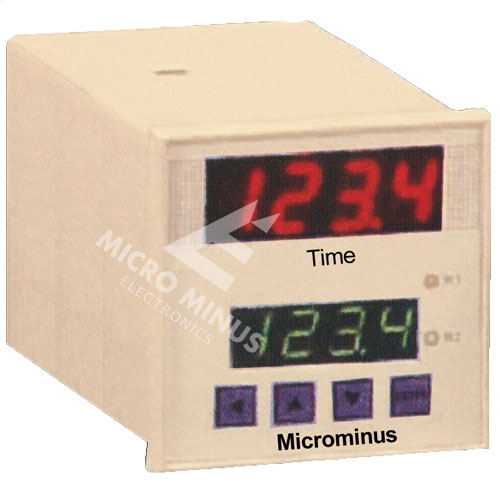

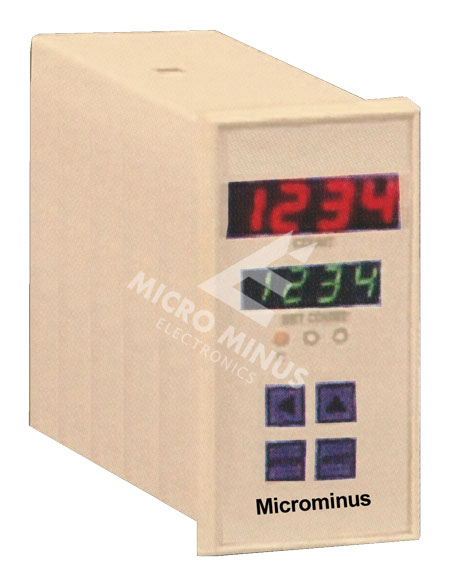

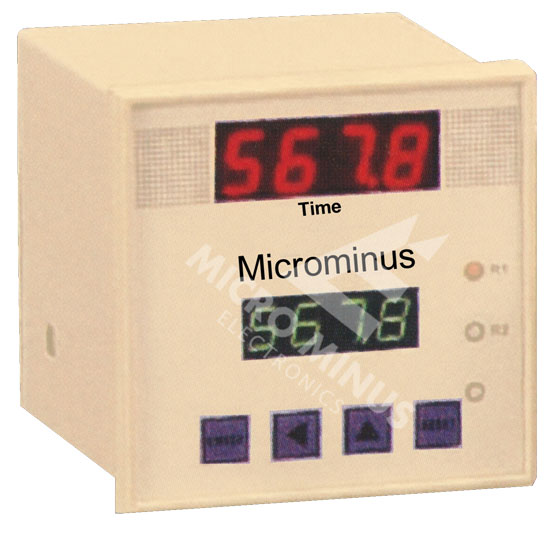

Panel Instruments Electro-plating Instruments Rectifiers Electrical Panel     Model No : PMT-9601 Model No : PMT-7201 Model No : PMT-4801 Panel Meters Digital Frequency Meter Temperature Indicators & Controllers Timers (Digital Timers) Timers (Programmable Timers) Counters Count Totalizers Time Totalizers RPM Indicators High Voltage Tester   Specifications : Display Upper 4D (RED), shows ELAPSED TIME (0.56")   Lower 6D (GREEN), shows SET TIME (0.4") Setting By front key pad Reset On front / power ON reset Output 2 C/O Relay Contact 5Amp/ 230V AC Supply 230V/110V Ac ± 10%, 50 Hz   Presettable Timers : Range 0-9999 999.9/99.99 sec/min Optional Auto reset   Single set/dual set point   Memory facility   Buzzer Output   Cycle Timer: Range ON TIME : 0-0.9/99 sec/min   OFF TIME: 0-9.9/99 sec/min Start / Stop Facility from key pad Optional START & STOP at back terminals   Memory facility   2 Relays (1st for ON Times & 2nd for OFF Time)   Laundry Timer: Range Forward Time 0-9.9/99 sec/min   Reverse Time 0-9.9/99 sec/min   Stop Time 0-99 sec   Total Cycle Time 0-9999/ 999.9 min Start / Stop From key pad   Output 2 Relays 5 Amp/ 230V AC 1st relay for Forward Time     2nd Relay for Reverse Time Model No PMT-96XX PMT-72XX PMT-48XX Range 2 or 3 Digit 2 or 3 Digit 2 or 3 Digit Size (mm) 96 x 96 72 x 72 48 x 96 Cutout (mm) 92 x 92 68 x 68 44 x 92 Depth (mm) 120 120 120 Mounting Flush Panel Mounting Flush Panel Mounting Flush Panel Mounting MICROMINUS ELECTRONICS COMPANY 11, Tulsi Shyam Apartment, 30, Dhanlaxmi Society, Opp. Gopal Tower, Maninagar, Ahmedabad – 380008 Gujarat, India. Email: info@microminus.com website: www.microminus.com Contact (O): (079) 25471112 Res: (079) 25462930 Mobile: 98257 23804 © 2008 | Microminus Electronics Company     designed by webplus
