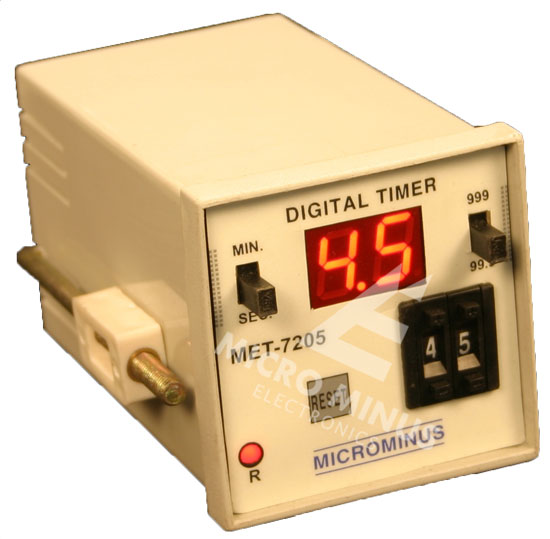

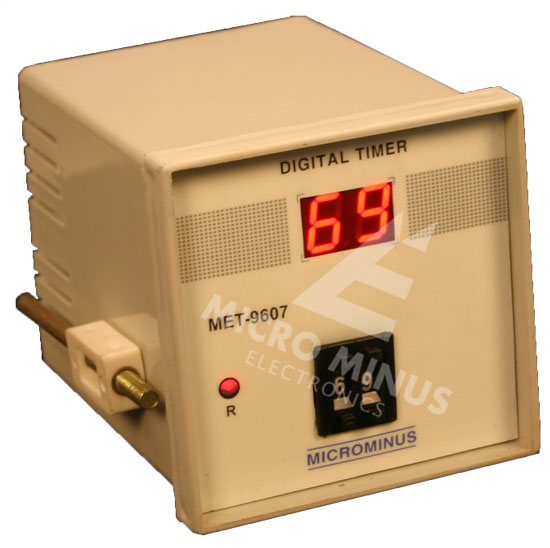

Model No:MET-7205 Model No:MET-9607
Panel Meters
Digital Frequency Meter
Temperature Indicators & Controllers
Timers (Digital Timers)
Timers (Programmable Timers)
Counters
Count Totalizers
Time Totalizers
RPM Indicators
High Voltage Tester

Specifications :
Range 2 Digit : 0-9.9 / 99 min/sec
3 Digit : 0-9.99 / 99.9 min/sec
2 Digit Multirange : 0-9.9 / 99 sec / min
3 Digit Multirange : 0-99.9 / 999 min/sec
Control Action Delayed ON (Delayed OFF type Optional)
Reset Power ON Reset
Accuracy +-1% of Full Scale
Setting Thumbwheel Switch
Output 2 C/O Relay contact 5 Amp / 230V AC Rating
Supply 230V / 110V AC +- 10%, 50Hz.
Optional Auto Reset
Buzzer Output
Reset at front by Key

Model Series
MET-96XX MET-72XX MET-48XX
Range 2 or 3 Digit 2 or 3 Digit 2 or 3 Digit
Size (mm) 96 x 96 72 x 72 48 x 96
Cutout (mm) 92 x 92 68 x 68 44 x 92
Depth (mm) 120 120 120
Mounting Flush Panel Mounting Flush Panel Mounting Flush Panel Mounting


Model No:
MET-YY02 : 3 Digit Multirange with Reset.
MET-YY03 : 3 Digit Reset.
MET-YY04 : 3 Digit Power ON Reset.
MET-YY05 : 2 Digit Multirange with Reset.
MET-YY06 : 2 Digit Reset.
MET-YY07 : 2 Digit Power ON Reset.
  (YY = 96, 72 & 48 as per the size)

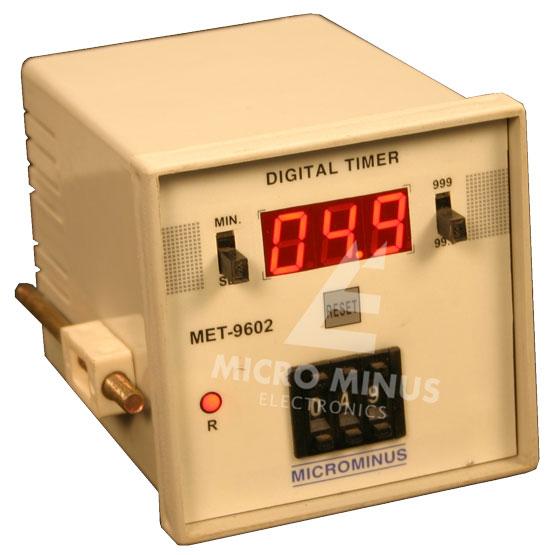

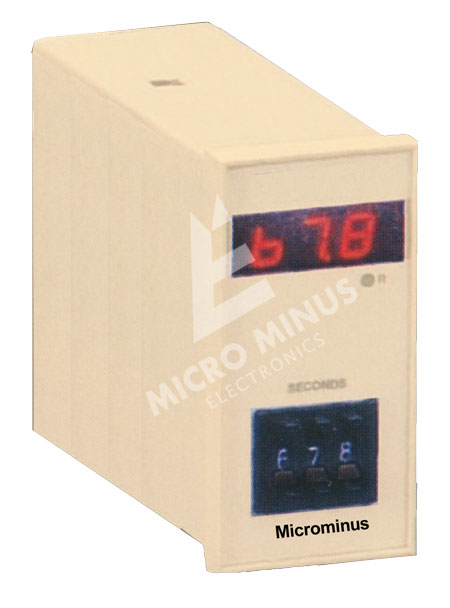

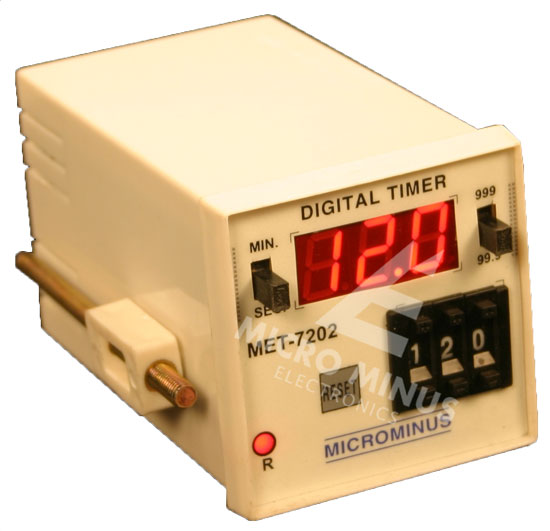

Model No:MET-9602 Model No:MET-7202 Model No:MET-4801
